The auto diecasting revolution has transformed how we think about automotive manufacturing, making it faster, more precise, and incredibly efficient. This groundbreaking process has become the backbone of modern vehicle production, actually changing the way manufacturers approach component creation. From tiny engine brackets to massive transmission housings, auto diecasting touches nearly every aspect of your vehicle’s construction in ways you might never have imagined.
What is Auto Diecasting?
Auto diecasting represents a specialized metal casting process specifically designed for automotive applications, where molten metal gets injected into precision-engineered steel molds under extremely high pressure. This manufacturing technique creates complex automotive components with remarkable accuracy and repeatability. The process combines speed, precision, and cost-effectiveness in a way that traditional manufacturing methods simply cannot match.
The automotive industry relies heavily on this technology because it produces parts that meet strict quality standards while maintaining competitive pricing. Actually, most people don’t realize that their car contains dozens of die-cast components, from the humble door handles to critical engine components that keep everything running smoothly.
| Auto Diecasting Specification | Details |
|---|---|
| Process Type | High-pressure metal injection |
| Primary Materials | Aluminum, Zinc, Magnesium alloys |
| Typical Pressure Range | 1,500 – 25,000 PSI |
| Production Rate | 100-1,000+ parts per hour |
| Dimensional Tolerance | ±0.1mm to ±0.5mm |
| Surface Finish | Ra 1.6 – 6.3 μm |
| Wall Thickness Range | 0.6mm – 20mm |
| Maximum Part Size | Up to 65kg weight |
Historical Development and Industry Evolution
The auto diecasting industry emerged in the early 1900s when automotive manufacturers needed better ways to produce complex metal parts efficiently. Initially, the process was quite basic, but technological advancements have transformed it into today’s sophisticated manufacturing method. The early pioneers faced significant challenges with material properties and mold design, but their persistence laid the foundation for modern automotive excellence.
During the 1950s and 1960s, auto diecasting experienced unprecedented growth as car manufacturers realized its potential for mass production. The introduction of computer-controlled systems in the 1980s revolutionized precision and consistency, making it possible to produce parts with tolerances that were previously unachievable. Today’s auto diecasting facilities use advanced robotics and real-time monitoring systems that would seem like science fiction to early practitioners.
Modern auto diecasting operations integrate seamlessly with Industry 4.0 principles, using IoT sensors and artificial intelligence to optimize every aspect of the process. The industry landscape is being reshaped by significant investments and technological collaborations among key players. In January 2024, Neta announced its collaboration with LK Technology to develop a die-casting machine exceeding 20,000 tons, aimed at streamlining manufacturing processes.
Types and Classifications of Auto Diecasting Processes
Hot Chamber Auto Diecasting
Hot chamber auto diecasting works exceptionally well for lower melting point metals like zinc and some magnesium alloys, where the injection mechanism stays permanently immersed in molten metal. This method offers incredible speed and efficiency for smaller automotive components. The process typically achieves cycle times of 15-60 seconds, making it perfect for high-volume production runs.
The hot chamber system maintains consistent metal temperature throughout the entire process, which results in superior part quality and reduced energy consumption. Automotive manufacturers prefer this method for producing components like decorative trim pieces, small brackets, and electrical housings. However, the process has limitations regarding the types of metals that can be used due to the corrosive nature of molten aluminum on steel components.
Many automotive suppliers use hot chamber auto diecasting for zinc-based components because zinc offers excellent corrosion resistance and can be finished with various coatings. The process produces parts with exceptional surface quality that often require minimal post-processing, which keeps manufacturing costs down while maintaining high quality standards.
Cold Chamber Auto Diecasting
Cold chamber auto diecasting dominates automotive applications involving aluminum and magnesium alloys, where molten metal gets ladled into the machine for each cycle. This approach prevents the injection system from being damaged by high-temperature aluminum, which would quickly destroy hot chamber equipment. The process requires more complex handling systems but produces larger, more complex parts.
Pressure die casting dominates the global die casting market, commanding approximately 55% of the total market share in 2024. This significant market position is attributed to its effectiveness in mass manufacturing complex shapes with high durability and seamless integration capabilities. Cold chamber systems can handle parts weighing up to 65 kilograms, making them ideal for engine blocks, transmission cases, and structural components.
The cold chamber process allows for better control over metal composition and temperature, resulting in parts with superior mechanical properties. Automotive engineers appreciate the flexibility this process offers in terms of alloy selection and part complexity. Actually, some of the most critical safety components in modern vehicles are produced using cold chamber auto diecasting techniques.
Semi-Solid Metal Auto Diecasting
Semi-solid metal auto diecasting represents the cutting edge of automotive manufacturing technology, where metal is processed in a semi-solid state rather than fully molten. This advanced technique produces parts with exceptional mechanical properties and reduced porosity compared to conventional methods. The process requires specialized equipment and precise temperature control, but the results justify the additional complexity.
This innovative approach to auto diecasting reduces turbulence during injection, which minimizes defects and improves part integrity. Automotive applications include critical structural components that must withstand extreme stress and vibration. The semi-solid process also allows for heat treatment of finished parts, further improving their mechanical properties.
Many premium automotive manufacturers are investing heavily in semi-solid metal auto diecasting technology because it enables the production of lightweight components without sacrificing strength. The process is particularly valuable for electric vehicle applications where weight reduction directly impacts battery range and performance.
Materials Used in Auto Diecasting Operations
Aluminum Alloys in Automotive Manufacturing
Aluminum alloys dominate auto diecasting applications due to their excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity properties. The most commonly used aluminum alloys in automotive applications include A380, A383, and A413, each offering specific advantages for different components. These alloys provide the perfect balance between castability, mechanical properties, and cost-effectiveness.
The Automotive Parts Aluminum Die Casting Market size is estimated at USD 27.68 billion in 2024, and is expected to reach USD 41.55 billion by 2029, growing at a CAGR of greater than 7% during the forecast period (2024-2029). Factors such as the rising demand for lightweight vehicles and the increasing focus on fuel efficiency drive this tremendous growth.
Aluminum auto diecasting produces components like engine blocks, cylinder heads, transmission housings, and suspension components that require both strength and light weight. The material’s excellent thermal conductivity makes it particularly suitable for heat-dissipating components like brake calipers and engine cooling system parts. Modern aluminum alloys also offer good machinability for secondary operations when required.
Zinc Alloys and Their Applications
Zinc alloys in auto diecasting offer exceptional dimensional accuracy, excellent surface finish, and superior corrosion resistance for automotive applications. The most popular zinc alloys include Zamak 3, Zamak 5, and ZA-8, each formulated for specific performance requirements. These materials flow exceptionally well during the casting process, allowing for intricate details and thin wall sections.
Automotive applications for zinc auto diecasting include door handles, window regulators, seat adjustment mechanisms, and decorative trim pieces. The material’s ability to be plated, painted, or powder-coated makes it ideal for visible components that require attractive finishes. Zinc alloys also provide excellent wear resistance for moving parts like gear housings and bracket assemblies.
The cost-effectiveness of zinc alloys makes them particularly attractive for high-volume automotive components where material costs significantly impact overall production expenses. Actually, many automotive manufacturers prefer zinc for components that require complex geometries or multiple integrated features that would be expensive to produce using traditional machining methods.
Magnesium Alloys for Weight Reduction
Magnesium alloys represent the lightest structural metals available for auto diecasting, offering density approximately 33% lower than aluminum and 75% lower than steel. These materials provide excellent strength-to-weight ratios and good electromagnetic shielding properties. Magnesium’s lightweight characteristics make it increasingly important as automotive manufacturers strive to improve fuel efficiency and reduce emissions.
Common magnesium alloys used in auto diecasting include AZ91D, AM60B, and AS41B, each offering different combinations of strength, ductility, and corrosion resistance. Automotive applications include steering wheel cores, seat frames, instrument panel structures, and transmission cases. The material’s good machinability allows for precise secondary operations when required.
However, magnesium auto diecasting requires special safety precautions due to the material’s flammability during processing. Manufacturing facilities must implement specialized fire suppression systems and operator training programs. Despite these challenges, the weight savings potential makes magnesium alloys increasingly attractive for electric vehicle applications where every gram matters.
Market Analysis and Industry Growth Trends
Current Market Size and Projections
The auto diecasting market has experienced remarkable growth, with multiple industry reports indicating strong upward trends across all segments. The global market for Automotive Parts Die Casting was valued at US$16.4 Billion in 2024 and is projected to reach US$24.1 Billion by 2030, growing at a CAGR of 6.6% from 2024 to 2030. This substantial growth reflects the increasing adoption of die-cast components across all vehicle categories.
The market expansion is driven by several factors including the growing demand for lightweight vehicles, increasing vehicle production, and the shift toward electric vehicles. Automotive Part Die Casting Market is expected to reach US$ 48.76 Bn by 2030, at a CAGR of 9.8% during the forecast period. These projections indicate that auto diecasting will continue playing an increasingly important role in automotive manufacturing.
Regional market analysis shows particularly strong growth in Asia-Pacific regions, where expanding automotive production and increasing middle-class purchasing power drive demand. European and North American markets focus more on advanced materials and processes for premium vehicle applications. The diversity of market drivers ensures continued growth across multiple geographical regions.
Driving Forces Behind Market Growth
Several key factors propel the auto diecasting market forward, with fuel efficiency regulations being among the most significant drivers. Government mandates for improved fuel economy push automotive manufacturers to reduce vehicle weight through increased use of die-cast aluminum and magnesium components. These regulations create consistent demand for lightweight manufacturing solutions.
The transition to electric vehicles creates new opportunities for auto diecasting applications, particularly in battery housings, motor housings, and structural components where weight reduction directly impacts range and performance. Electric vehicle manufacturers require components that combine light weight with excellent thermal management properties, making die-cast aluminum ideal for many applications.
Technological advancement in auto diecasting equipment and processes continues expanding the range of possible applications and improving part quality. Advanced simulation software, real-time process monitoring, and improved metallurgy enable manufacturers to produce more complex parts with better properties. These capabilities open new market segments and applications previously considered impractical.
Regional Market Dynamics
Asian markets, particularly China and India, dominate auto diecasting production volume due to their large automotive manufacturing bases and lower labor costs. These regions focus on high-volume production of cost-sensitive components for both domestic consumption and export markets. Investment in modern die-casting equipment and technology continues at rapid pace in these markets.
European auto diecasting markets emphasize advanced materials, precision manufacturing, and sustainability. German automotive manufacturers lead in developing innovative applications for magnesium and advanced aluminum alloys. European regulations regarding recycling and environmental impact drive innovation in process efficiency and material utilization.
North American auto diecasting markets focus on supporting both traditional internal combustion engine vehicles and the growing electric vehicle segment. The region’s strong engineering capabilities and established automotive supply chain make it ideal for developing new applications and processes. Market dynamics include both domestic production and strategic imports from lower-cost regions.
Advantages and Benefits of Auto Diecasting
Production Efficiency and Speed
Auto diecasting offers unmatched production speed compared to alternative manufacturing methods, with typical cycle times ranging from 30 seconds to several minutes depending on part complexity. High production rate: It is a relatively fast process, which can be an advantage when time is of the essence · Cost-efficient: The process is also relatively inexpensive, making it a cost-effective option for many applications · Repeatability: It also allows for a high degree of repeatability. This speed advantage becomes crucial for high-volume automotive applications.
The rapid cycle times of auto diecasting enable manufacturers to meet demanding production schedules while maintaining consistent quality. Modern automated systems can operate continuously with minimal human intervention, further improving productivity and reducing labor costs. The ability to produce finished parts with minimal secondary operations adds to the overall efficiency advantage.
Manufacturers like using die casting because it produces high volume, functional end use parts with complex shapes, using industry-grade materials like magnesium, zinc alloy, and aluminum. It is also a highly repeatable process that allows 100,000+ identical parts to be made with ease. This repeatability ensures consistent quality across large production runs, which is essential for automotive applications.
Dimensional Accuracy and Surface Quality
The dimensional accuracy achievable through auto diecasting surpasses most other manufacturing methods, with typical tolerances ranging from ±0.1mm to ±0.5mm depending on part geometry and material. This precision reduces or eliminates the need for secondary machining operations, saving both time and cost. The process consistently produces parts that meet stringent automotive quality standards.
Surface finish quality from auto diecasting operations typically ranges from Ra 1.6 to 6.3 μm, often eliminating the need for additional surface preparation before painting or plating. This excellent surface quality results from the smooth steel dies and high injection pressures used in the process. Many automotive components can be used directly from the die-casting process without additional finishing operations.
The combination of dimensional accuracy and surface quality makes auto diecasting ideal for visible automotive components where both function and appearance matter. Components like door handles, trim pieces, and instrument panel components benefit from the excellent as-cast surface quality that reduces manufacturing costs while maintaining premium appearance.
Design Flexibility and Complex Geometries
Auto diecasting enables the production of complex geometries that would be difficult or impossible to achieve using traditional manufacturing methods. The process can create parts with intricate internal passages, thin walls, and integrated features that would require multiple components using other manufacturing approaches. This design flexibility often leads to part consolidation and reduced assembly costs.
The ability to incorporate multiple functions into a single die-cast component provides significant advantages in automotive applications where space and weight are critical factors. Features like mounting bosses, bearing surfaces, and fluid passages can be integrated directly into the casting, eliminating separate components and potential assembly problems.
Modern auto diecasting can produce parts with wall thickness variations, undercuts, and complex three-dimensional shapes that optimize both function and material usage. Advanced die design techniques and multi-slide tooling systems expand the range of possible geometries, making previously impossible designs achievable.
Challenges and Limitations in Auto Diecasting
Initial Investment and Tooling Costs
The high initial investment required for auto diecasting equipment and tooling represents a significant barrier for many manufacturers, particularly smaller companies. Die-casting machines can cost hundreds of thousands to millions of dollars, while the steel dies required for production can cost $50,000 to $500,000 or more depending on complexity. These upfront costs must be amortized over large production volumes to achieve economic viability.
The main advantages include shorter casting cycle, suitable for thin-walled components, and the good surface quality of castings. However, there are also some disadvantages such as high investment and operation cost, complicated and expensive die, and the low strength of castings. This cost structure makes auto diecasting most suitable for high-volume applications where tooling costs can be spread across many parts.
The complexity of die design and manufacturing requires specialized expertise that may not be readily available in all markets. Dies must be precisely engineered to ensure proper metal flow, cooling, and part ejection while withstanding thousands of casting cycles. The lead time for die construction can extend project timelines and delay product launches, particularly for new vehicle programs.
Material and Process Limitations
Auto diecasting is limited to non-ferrous metals, which excludes steel and iron alloys that offer superior strength properties for some automotive applications. The process cannot accommodate materials with melting points above approximately 700°C due to equipment limitations and die life considerations. This restriction limits material choices compared to other manufacturing processes.
Porosity remains a persistent challenge in auto diecasting, particularly in thick sections where trapped air and shrinkage can create internal voids. While vacuum-assisted systems and squeeze casting techniques help minimize porosity, completely eliminating it remains difficult. Some automotive applications requiring pressure-tight castings may require additional sealing or impregnation processes.
The high cooling rates inherent in auto diecasting can create residual stresses and dimensional instability in some applications. Parts may require stress-relief heat treatment for critical applications, adding cost and complexity to the manufacturing process. Thermal expansion and contraction during cooling can also cause warping in large, thin-walled parts.
Quality Control and Defect Management
Maintaining consistent quality in auto diecasting operations requires sophisticated monitoring and control systems to detect and prevent various types of defects. Common issues include cold shuts, gas porosity, shrinkage, and die soldering, each requiring different prevention and detection strategies. The high production rates can make defect detection challenging without automated systems.
Flash and excess material removal represents an ongoing challenge in auto diecasting operations, requiring either manual trimming or automated finishing processes. Inconsistent flash patterns can indicate die wear or process parameter variations that need immediate attention. Managing flash removal while maintaining production efficiency requires careful balance.
Surface defects like flow marks, sink marks, and die marking can affect both function and appearance of automotive components. Preventing these defects requires careful attention to die design, process parameters, and die maintenance procedures. Quality systems must be designed to catch these issues before defective parts reach automotive assembly operations.
FAQs About Auto Diecasting
What makes auto diecasting different from regular die casting?
Auto diecasting differs from general die casting primarily in its specialized focus on automotive applications, which require stricter quality standards, specific material properties, and compliance with automotive industry certifications. Automotive components must withstand extreme temperature variations, vibrations, and corrosive environments that general industrial applications might not encounter. The process parameters, quality control systems, and material specifications are all optimized for automotive performance requirements.
The dimensional tolerances and surface finish requirements for auto diecasting are typically more stringent than general industrial applications. Automotive components often require special certifications like TS 16949, and manufacturers must implement statistical process control and traceability systems that exceed typical industrial standards. The integration with automotive supply chains also requires specific packaging, delivery, and documentation requirements.
Additionally, auto diecasting operations must consider the entire vehicle lifecycle, including recyclability, environmental impact, and end-of-life disposal. These considerations influence material selection, process design, and manufacturing procedures in ways that general die casting applications might not require.
How does auto diecasting compare to traditional machining for automotive parts?
Auto diecasting offers significant advantages over traditional machining for automotive parts, including much faster production rates, lower material waste, and the ability to create complex internal geometries. While machining removes material to create parts, die casting adds material only where needed, resulting in material utilization rates exceeding 95% compared to 20-60% for machining operations.
The near-net-shape capability of auto diecasting often eliminates most machining operations, reducing production time from hours to minutes for complex parts. However, machining offers superior dimensional accuracy and surface finish for critical features, making hybrid approaches common where parts are die cast and then machined only where necessary.
Cost comparisons depend heavily on production volume, with auto diecasting becoming increasingly advantageous as volumes increase due to its high throughput and low per-part labor costs. For low-volume applications or prototypes, machining may be more cost-effective due to lower tooling costs and greater flexibility.
What automotive components are typically produced using auto diecasting?
Auto diecasting produces a wide range of automotive components including engine blocks, transmission cases, cylinder heads, brake calipers, suspension components, and structural body parts. Aluminum die-cast engine blocks are common in many modern vehicles due to their lightweight properties and excellent thermal conductivity. Transmission housings benefit from the process’s ability to create complex internal passages and mounting features.
Body structure components like shock towers, cross members, and door frames increasingly use auto diecasting to reduce weight while maintaining structural integrity. Interior components such as seat frames, instrument panel supports, and door hardware also benefit from the process’s design flexibility and excellent surface finish capability.
Electric vehicle applications have created new opportunities for auto diecasting in battery housings, motor housings, and thermal management components. These applications particularly value the combination of lightweight construction, thermal conductivity, and electromagnetic shielding properties available through die-cast aluminum alloys.
How long do auto diecasting dies typically last?
Auto diecasting die life varies significantly based on material being cast, part complexity, production volumes, and maintenance practices, but typically ranges from 100,000 to 1,000,000 shots for aluminum applications. Zinc die-casting dies generally last longer due to the lower casting temperatures and less aggressive material properties, potentially reaching millions of cycles with proper maintenance.
Die life for auto diecasting operations can be extended through proper die design, regular maintenance, and careful process control. Factors that reduce die life include high casting temperatures, corrosive alloys, complex geometries that create stress concentrations, and poor maintenance practices. Preventive maintenance programs including regular inspection, cleaning, and surface treatments can significantly extend useful die life.
The economic impact of die replacement must be considered in production planning, as dies represent significant capital investments. Many auto diecasting operations maintain spare dies or implement die refurbishment programs to minimize production disruptions when dies reach end of life.
What quality standards apply to auto diecasting operations?
Auto diecasting operations must comply with automotive industry quality standards including TS 16949, which covers quality management systems specifically for automotive production. This standard requires implementation of statistical process control, continuous improvement programs, and comprehensive traceability systems that track parts from raw materials through final delivery.
Environmental regulations also impact auto diecasting operations, including air quality standards for melting operations, waste disposal requirements for cutting fluids and die lubricants, and recycling requirements for metal waste. Many automotive manufacturers require suppliers to meet specific environmental certifications and sustainability targets.
Safety standards for auto diecasting operations include OSHA requirements for industrial machinery, specialized requirements for handling molten metals, and specific safety protocols for different alloy types. Magnesium casting operations require additional fire safety measures due to the material’s flammability, while aluminum operations must address thermal hazards and fume management.
How is auto diecasting adapting to electric vehicle manufacturing?
Auto diecasting is rapidly adapting to electric vehicle manufacturing requirements, with new applications in battery housings, motor housings, and structural components that integrate multiple functions. Electric vehicles require lightweight construction to maximize battery range, making die-cast aluminum and magnesium components increasingly important. The excellent thermal conductivity of die-cast aluminum also makes it ideal for battery thermal management systems.
Large structural castings are becoming more common in electric vehicle manufacturing, with some manufacturers using auto diecasting to produce single-piece rear sections or front structures that replace dozens of stamped and welded components. This approach reduces weight, improves structural integrity, and simplifies assembly processes.
The electromagnetic shielding properties of die-cast components also provide benefits for electric vehicle applications, helping protect sensitive electronic systems from interference. As electric vehicle production volumes increase, auto diecasting operations are scaling up to meet demand while developing new alloys and processes optimized for electric vehicle requirements.
What environmental considerations affect auto diecasting operations?
Auto diecasting operations face increasing environmental regulations covering air emissions, energy consumption, waste generation, and material recycling. Melting operations must comply with air quality standards that limit particulate emissions and volatile organic compounds. Energy efficiency has become increasingly important as utility costs rise and carbon footprint reduction becomes a competitive advantage.
Material recycling represents both an opportunity and challenge for auto diecasting operations, as aluminum and other non-ferrous metals maintain their properties through multiple recycling cycles. However, recycling systems must carefully control alloy composition and remove contaminants that could affect part quality. Many operations now integrate recycled content while maintaining strict quality standards.
Water usage and treatment also impact environmental compliance for auto diecasting operations, particularly for die cooling and part quenching operations. Closed-loop cooling systems and water treatment technologies help minimize environmental impact while reducing operating costs. Waste minimization programs focus on reducing material waste, extending die life, and improving process efficiency.
Meta Title: Auto Diecasting: Revolutionary Manufacturing Excellence in Modern Automotive Industry
Meta Description:

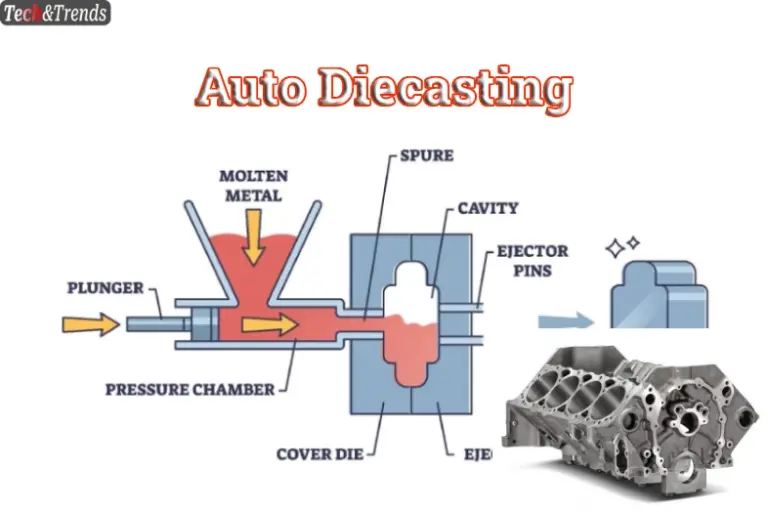

Image Alt Text 1: Auto diecasting machine producing precision automotive components with molten aluminum injection process
